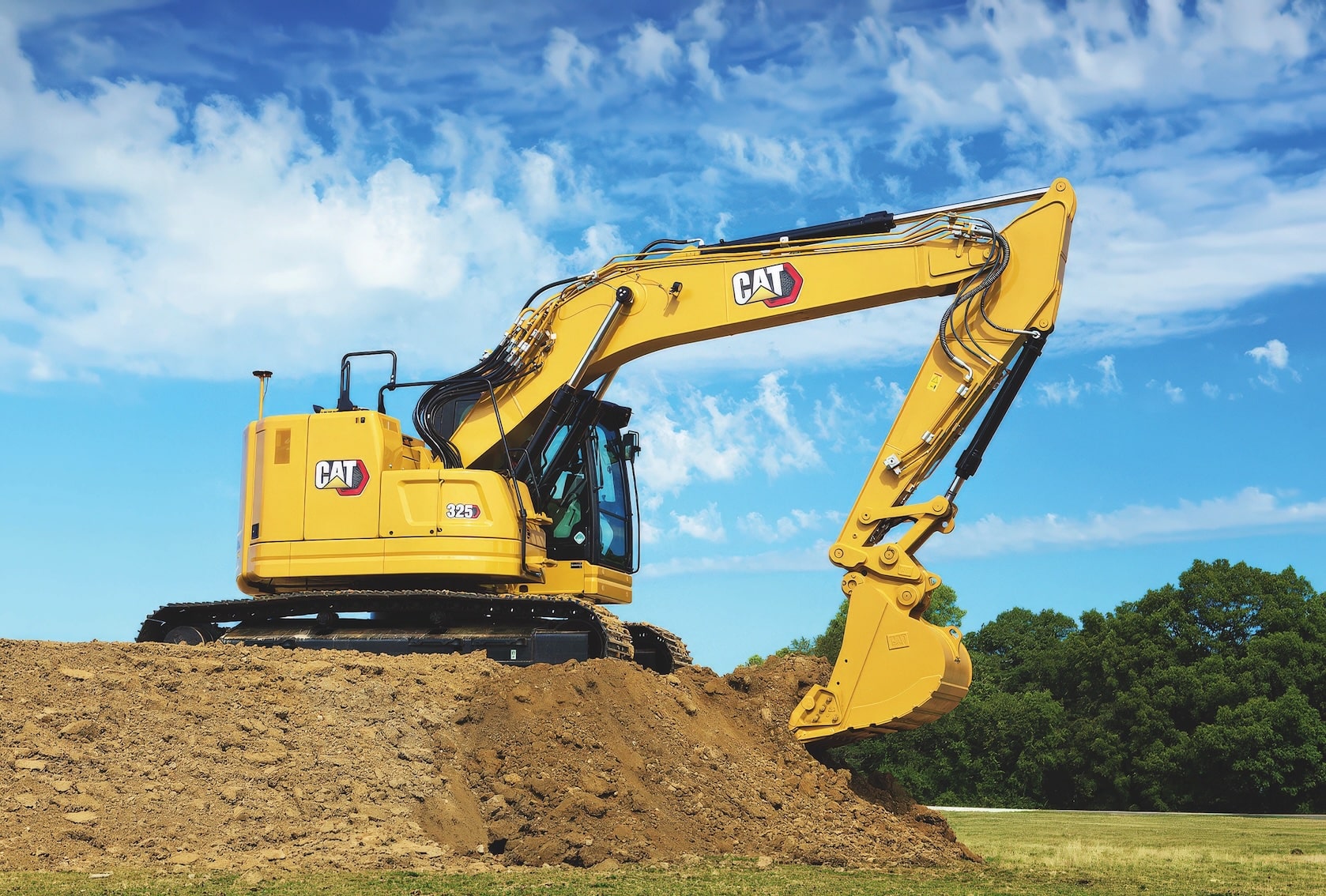

Designed to deliver powerful performance on confined work sites, the new Cat 325 excavator combines compact versatility, the latest technology, and lower operating costs in one efficient package.
With its compact radius design, the Cat 325 hydraulic excavator is ideal for working in tight spaces.
It delivers improved performance with integrated, simple-to-use technologies to reduce operator fatigue and boost efficiencies compared to previous models.
The new model also offers reduced fuel consumption, lower maintenance costs, and improved operator comfort, contributing to a low cost per hour of operation.
To meet restrictions on transport requirements, two counterweights are available: an 8.3 tonne counterweight, designed to maximise lifting performance, and a 4.9t counterweight, designed to contain the overall machine weight where more stringent transport limits are in place.
Reach or HD booms, a variety of hydraulic tool controls, and a choice of couplers and buckets are also available.
Tested on the job, the Cat C4.4 engine comes with a Tier 3 option and efficiently powers the 325 excavator in the toughest conditions, reducing fuel consumption.
The Tier 3 engine means no AdBlue is required. The 325 features three selectable power modes to match the excavator to the application for increased fuel efficiency.
The excavator has a standard high-ambient operating temperature capability of 50°C and a standard cold start capability of -18°C.
Operating simplicity is key to the design of this new machine. Operators can program and store joystick and power mode settings using an operator ID, while navigating quickly and accessing the operator’s manual using the high-resolution touchscreen monitor. The new excavator features a keyless push-button engine start, using operator ID codes to limit and track machine access.
High performance
The hydraulic system of the Cat 325 excavator provides an optimum balance of power and efficiency while giving the operator complete control of excavating precision.
Working on slopes is made easier with improved swing torque. Smart Mode offers fuel savings without productivity loss by automatically adjusting engine speed and hydraulic power to digging conditions.
The 325 also features auxiliary hydraulic options for using a range of Cat attachments.
Technology drives efficiency
Operating efficiency is lifted by the various standard Cat technologies that lower fatigue and operating costs, including fuel consumption and daily maintenance.
Operators can program up to four target depth and slope offsets with standard Cat Grade with 2D, enabling them to reach grade faster and save time on the job site.
Contractors can upgrade the standard 2D system to Cat Grade with Advanced 2D or 3D to fit different applications.
Standard Grade Assist allows the operator to stay on grade with single-lever digging, while Bucket Assist automatically maintains the angle in sloping, levelling, fine grading, and trenching applications.
Swing Assist reduces effort and fuel consumption by automatically stopping excavator swing at predefined set points for truck loading and trenching, and Boom Assist keeps the tracks on the ground in lifting and hard digging applications.
Cat Payload technology delivers precise load targets with on-the-go weighing to prevent over/underloading and to maximise efficiency.
The Caterpillar cloud-based telematics application VisionLink™ allows companies to access information and production targets through data gathered remotely by Payload, and download production data to a USB stick.
Remote Troubleshoot enables Cat dealers to perform diagnostic testing on connected machines remotely, pinpointing potential issues while they are in operation. It helps ensure the technician arrives with the correct parts and tools the first time, eliminating additional trips to save time and money.
Remote Flash allows operators to update onboard software without a technician being present, giving them the flexibility to initiate software updates when it is convenient and improving operating efficiency.
Maintenance is also made easier with Cat Inspect, a mobile app that supports preventative maintenance checks, inspections and daily walkarounds.
Comfort and safety
The next generation Cat 325 offers two all-new cab designs — Comfort and Deluxe.
The ISO-certified ROPS cab is sound-suppressed and sealed, and features automatic climate control. Rear view and right-hand side view cameras come as standard, while an optional 360-degree camera system is available.
The new Cat model also features a Bluetooth integrated radio as well as USB ports for charging and mobile phone connectivity.
With ample rear, overhead and console storage, operators can safely store their belongings while they work.
Lift Assist helps avoid tipping, with visual and auditory alerts when the load is within the excavator’s safe working range limits.
A customisable joystick allows operators to save their preferences, while Autodig lets the machine take over the digging process, delivering consistently full bucket loads, greater digging efficiency, and faster cycle times.
Synchronised maintenance intervals
The Cat 325 excavator reduces maintenance costs due to extended and more synchronised maintenance intervals.
All maintenance checkpoints are accessible at ground level, resulting in faster, easier, and safer daily maintenance checks.
Operators can monitor filter life and maintenance intervals via the in-cab monitor.
Consolidated filter locations reduce service time while hydraulic, air, and fuel tank filters have increased capacity and longer life.
The new excavator also features an air filter with double the dust-holding capacity of the previous version.
For more information on the Next Generation Cat 325 excavator, contact your local Cat dealer or visit cat.com.
