With its combination of intelligent drivetrain technology, permanent six-wheel drive traction and operator-focused productivity systems, the Liebherr TA 230 Litronic articulated dump truck has been engineered to move more material while consuming less fuel across demanding off-road applications.

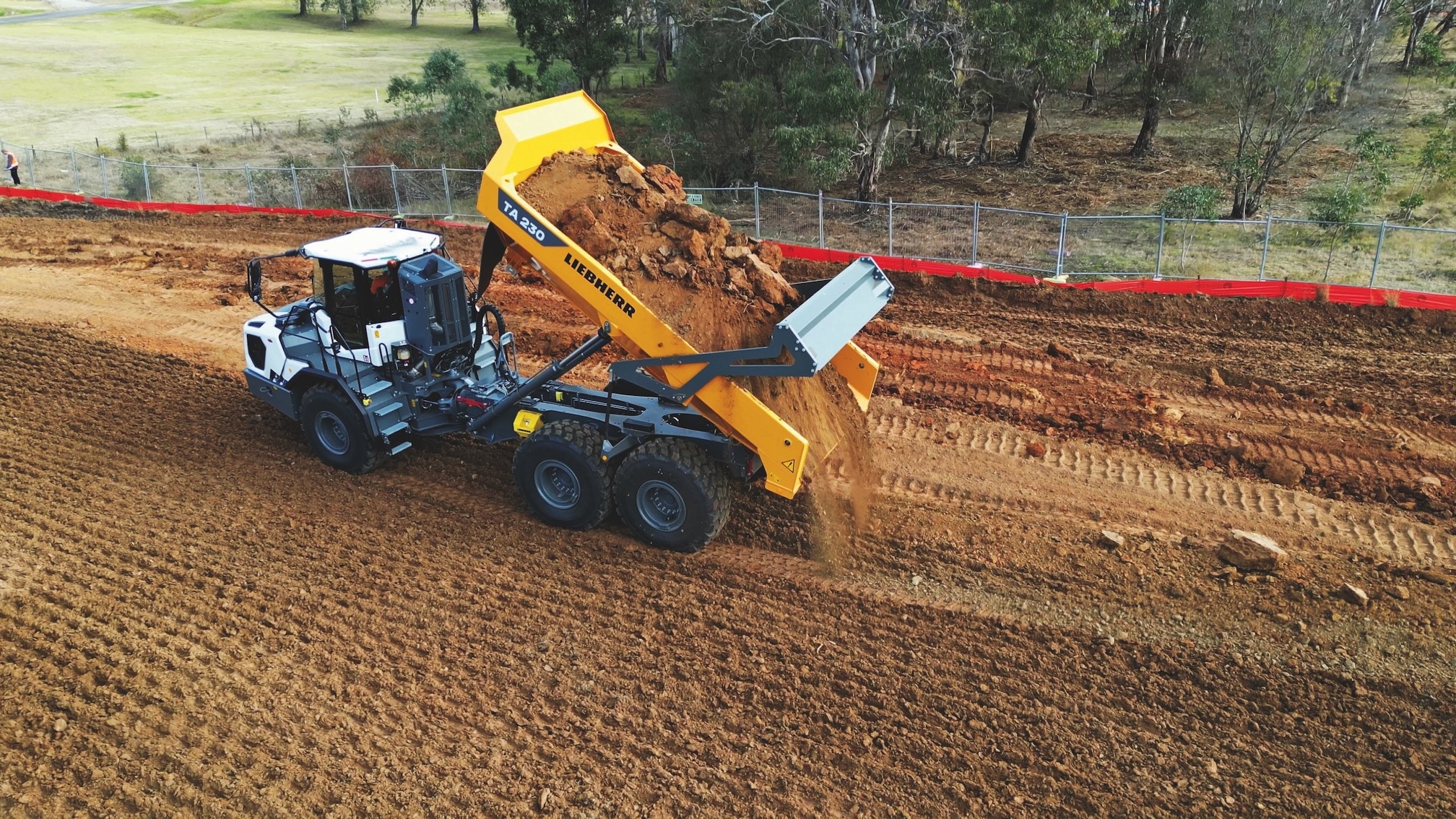

Designed specifically for quarrying, mining, tunneling, and infrastructure projects, the TA 230 combines high payload capacity with efficient power delivery to maximise tonnes moved per litre of diesel. The machine carries up to 28 tonnes of material, has a top speed of up to 57km/h, and features an 18.1m³ dump body, allowing operators to complete fewer cycles while maintaining high productivity.
At the heart of the TA 230 is a 12-litre six-cylinder engine producing 265kW/360hp, paired with an automatic eight-speed powershift transmission designed to optimise torque delivery across varying terrain.
The truck’s efficient drivetrain and 6×6 all-wheel-drive allow the machine to achieve fast cycle times while maintaining strong traction and reduced unnecessary wheel spin.
Fuel costs undoubtedly remain one of the biggest operational pressures facing earthmoving businesses, making machine efficiency more important than ever.
A contributor to the truck’s fuel economy is Liebherr’s automatic traction control system. The actively controlled inter-axle differential locks intelligently redistribute torque between axles whenever wheel spin is detected, ensuring power is delivered only where it is needed.
This system not only improves forward drive in difficult ground conditions, but reduces power demand and fuel consumption by minimising wasted energy.
The TA 230 has been developed with a balanced weight distribution, high ground clearance and flexible axle mounting to maintain traction over rough terrain without excessive throttle input. This enables operators to maintain momentum in muddy, loose, or uneven conditions while reducing unnecessary fuel burn.
The truck’s drivetrain was specifically designed for off-road use in maximum efficiency, with the combination of the traction control, drawbar pull, and power management helping operators move more material in less time.
The standard speed maintenance assistant further supports efficient operation by automatically regulating vehicle speed. Activated via the retarder lever, the system monitors speed and automatically adjusts engine braking and retarder performance when travelling downhill.
By maintaining controlled downhill travel speeds without excessive brake use or unnecessary acceleration, the Liebherr TA 230 helps reduce fuel consumption while also lowering component wear.
The truck’s integrated weighing system also contributes to operational efficiency. Installed as standard, the on-board system records payload weight in real time and displays the information in the operator’s cab. Operators can ensure the machine is consistently loaded to optimal capacity rather than underloaded or overloaded.
Correct payload management is critical in reducing fuel usage per tonne moved. Overloading increases fuel consumption and machine wear, while underloading reduces transport efficiency.
The TA 230’s live payload monitoring helps contractors and quarry operators achieve greater consistency across haul cycles.
All collected payload data is also transmitted through Liebherr’s LiDAT data transfer system, enabling fleet managers to monitor utilisation, productivity and machine performance remotely.
Liebherr has also focused on reducing downtime and simplifying maintenance, both of which contribute significantly to overall operating costs.
The TA 230 features a maintenance-friendly machine layout with unobstructed engine bay access and clearly arranged service points designed to reduce service times and improve machine availability.
The machine’s robust construction and durable components are engineered for abrasive quarry and mining environments, helping operators maintain long-term performance while minimising unnecessary repairs.
Operator comfort also plays a role in fuel-efficient productivity. The spacious cab layout, low interior noise levels, and vibration-dampening suspension system help reduce operator fatigue during long shifts, allowing operators to maintain smoother and more consistent machine operation throughout the day.

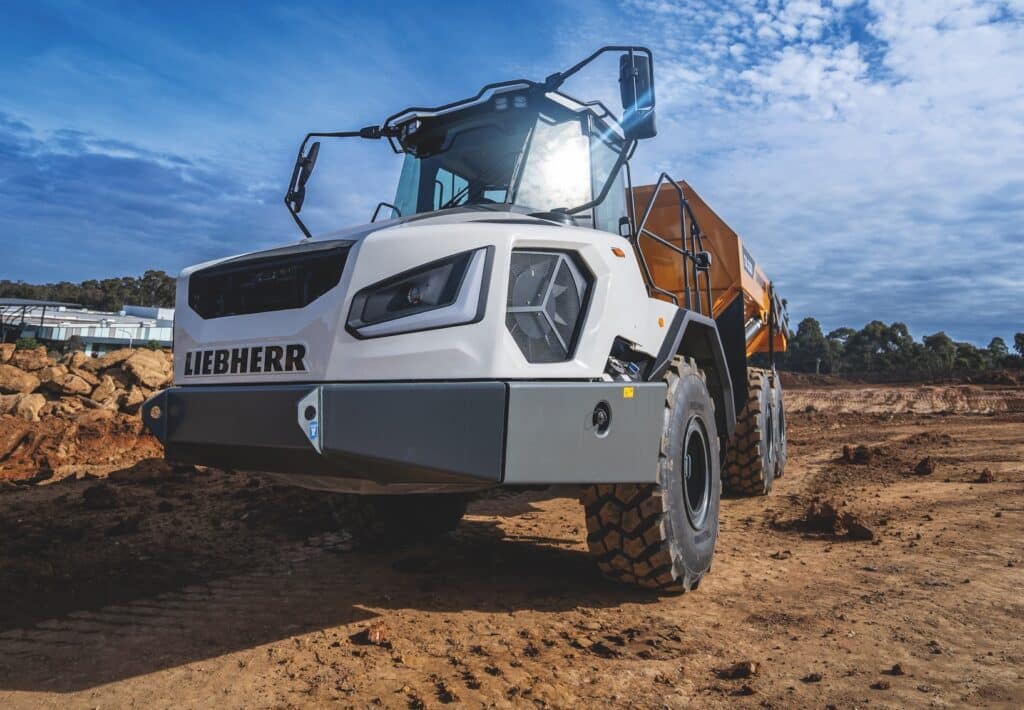

The cab’s excellent visibility, achieved through large glazed areas and a short sloping bonnet, improves manoeuvrability and helps operators position the truck efficiently during loading and dumping cycles.
