By converting wood waste into high-value biochar, new technology has addressed the challenge of debris disposal from land clearing, without the environmental hazards of open-air burning.
With sustainable solutions for forestry residue and agricultural waste a priority, the introduction of Tigercat Industries’ 6040 Carbonizer marks an advancement in mobile wood debris processing.
Officially released in June 2024, the 6040 Carbonizer is a redesign of its predecessor, the 6050 Carbonator. With a focus on performance, efficiency, environmental responsibility, and practicality in field operations, the 6040 sets a new standard for on-site biomass carbonisation.
The product emerged from Tigercat’s acquisition of related technology in 2019 and subsequent engineering refinements over several years. The revamp reflects feedback and insights from field personnel and engineers who understood the limitations of the earlier model, and sought to build a machine that not only performs reliably but also simplifies maintenance and serviceability.
Wood debris processing
The 6040 Carbonizer is a mobile on-site wood conversion system designed to transform woody biomass — such as logging residue, brush, limbs, and other organic waste — into high-quality organic carbon. This product can be used as a soil amendment or marketed for various commercial uses, offering landowners and forestry professionals an economically viable alternative to traditional disposal methods.
One of the defining attributes of the 6040 is its ability to reduce material volume by up to 90 per cent. This volume reduction not only minimises the physical footprint of waste, but also lowers transportation and handling costs when moving materials off-site.
At the same time, the carbonisation process captures and sequesters between 20 and 30 per cent of the available carbon in the feedstock, aligning with broader environmental goals related to greenhouse gas mitigation.
The carbonisation method employed by the Tigercat 6040 is noteworthy for its combination of thermal precision and efficient combustion control.
Unlike basic chipping or grinding, this process brings woody biomass into a controlled primary combustion environment where heat and limited oxygen initiate pyrolysis, causing volatile components to separate from the solid carbonaceous material.
A dual airflow system plays a key role: an under-air supply provides upward pressure, while an over-air supply creates a turbulent vortex zone. Here, released gases are held at high temperatures — about 1095 °C — for several seconds, ensuring thorough combustion and reducing particulate and contaminant emissions. The result is a cleaner process and a higher-quality carbon product.

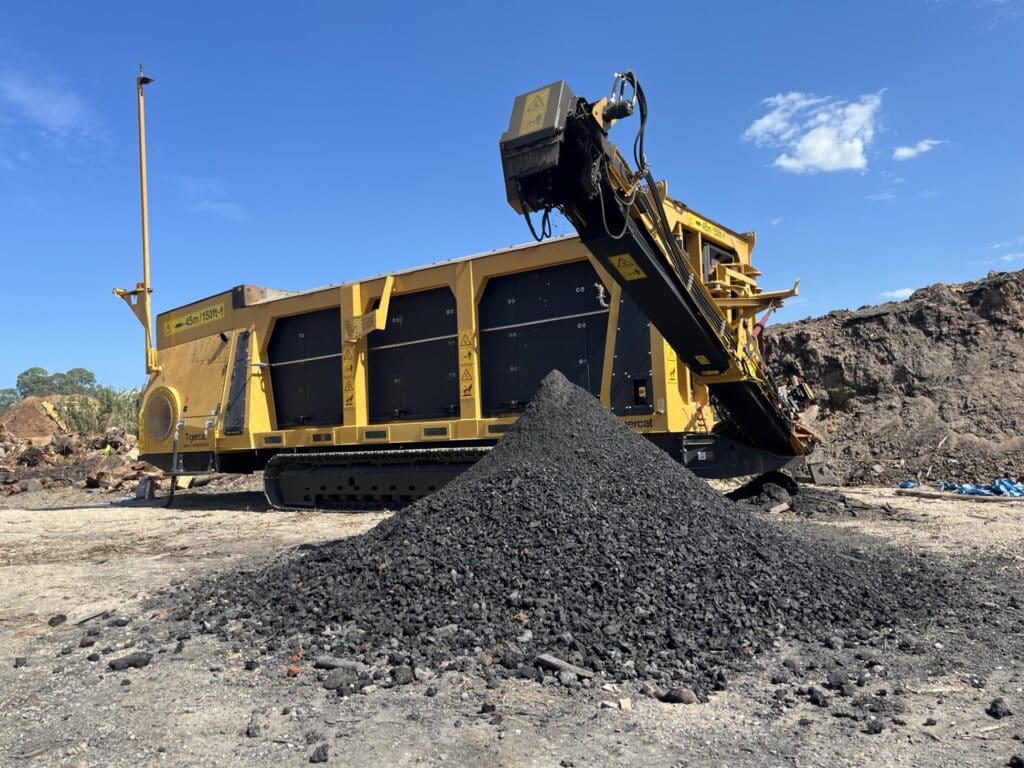

Once the carbon is separated, it drops through robust grates into a sealed quenching water bath, where it is cooled and stabilised. It is then moved via auger and discharged onto an adjustable conveyor, ready for collection or further handling.
Design enhancements and operational advantages
A focus during the 6040’s development was serviceability and modularity. The new design allows key components — such as the undercarriage, auger trough, and conveyor — to be bolt-on sections that can be detached or replaced independently. This modular approach facilitates easier repairs and reduces downtime, a valuable feature for machines deployed in remote or high-use environments.
Within the carbonising chamber, the grates are divided into seven rotatable sections, enabling operators to balance wear and extend component life. The thermal-ceramic panel seals were also redesigned with improved composition to lower back-face temperatures and retain more heat, contributing to stable chamber conditions that enhance throughput and carbon yield.
In addition to internal improvements, the machine’s weight has been reduced from about 43,550kg to 37,650kg, and extended track frames improve load distribution while minimising soil compaction — an important consideration for sensitive field sites. Telematics and integrated temperature sensors throughout the machine provide operators with real-time data, simplifying process monitoring and support.
Another advantage is the adjustable discharge conveyor, which pivots over a wide range and can be raised or lowered. This flexibility simplifies product management on site and eliminates the need to detach the conveyor for transport.
Environmental and economic impact
By transforming waste wood into stable carbon, the machine provides a way to sequester carbon for thousands of years, contributing to sustainable forestry and land management practices.
The process’s low emissions profile displaces more carbon-intensive disposal methods such as open burning, making the 6040 attractive to organisations seeking greener operations.
Economically, the ability to produce a valuable end product — organic carbon that can improve soil health or serve as a commercial input — adds financial incentive for users.
Meanwhile, reduced transportation and handling costs, coupled with efficient on-site processing, make the 6040 a sound investment for forestry, agricultural, and land-clearing applications.
